| Product Name: | high precision turrent universal cylindrical grinding machine with B axis, internal grinding axis | machining workpice diamter: | 5-320mm(customization acceptable） |
|---|---|---|---|
| machining workpice length: | 10-750mm | B axis rotaory angle: | 360 degrees |
| external griniding spindle: | maxium equipped with 2 external spindle | internal griniding spindle: | 1 external spindle |
| Max. Grinding Diameter: | 200mm | Max. Grinding Length: | 1000mm |
| Overall Dimensions: | 1800×1400×1400mm | Table Speed: | 2-20m/min |
| Table Swivel Angle: | ±5° | Tailstock Taper: | Morse No.3 |
| Tailstock Travel: | 150mm | Weight: | 1800Kg |
| Workhead Motor Power: | 0.75KW | Workhead Speed Range: | 40-400rpm |

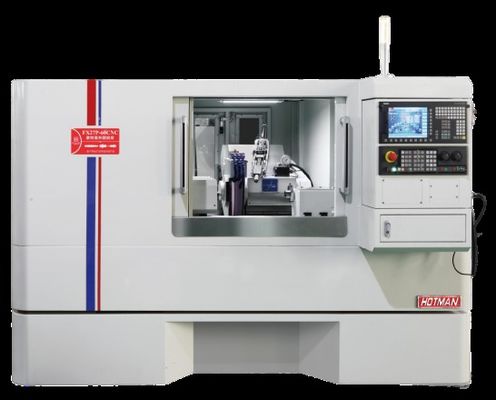

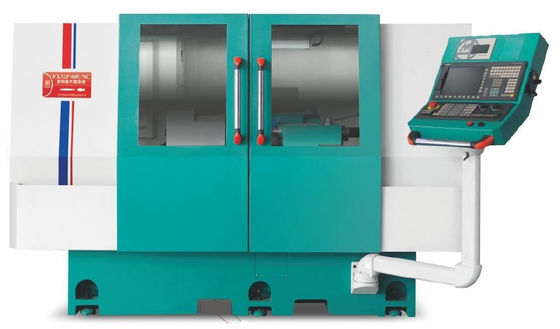

B축, 내면 연삭축을 갖춘 고정밀 터렛 범용 원통 연삭기
